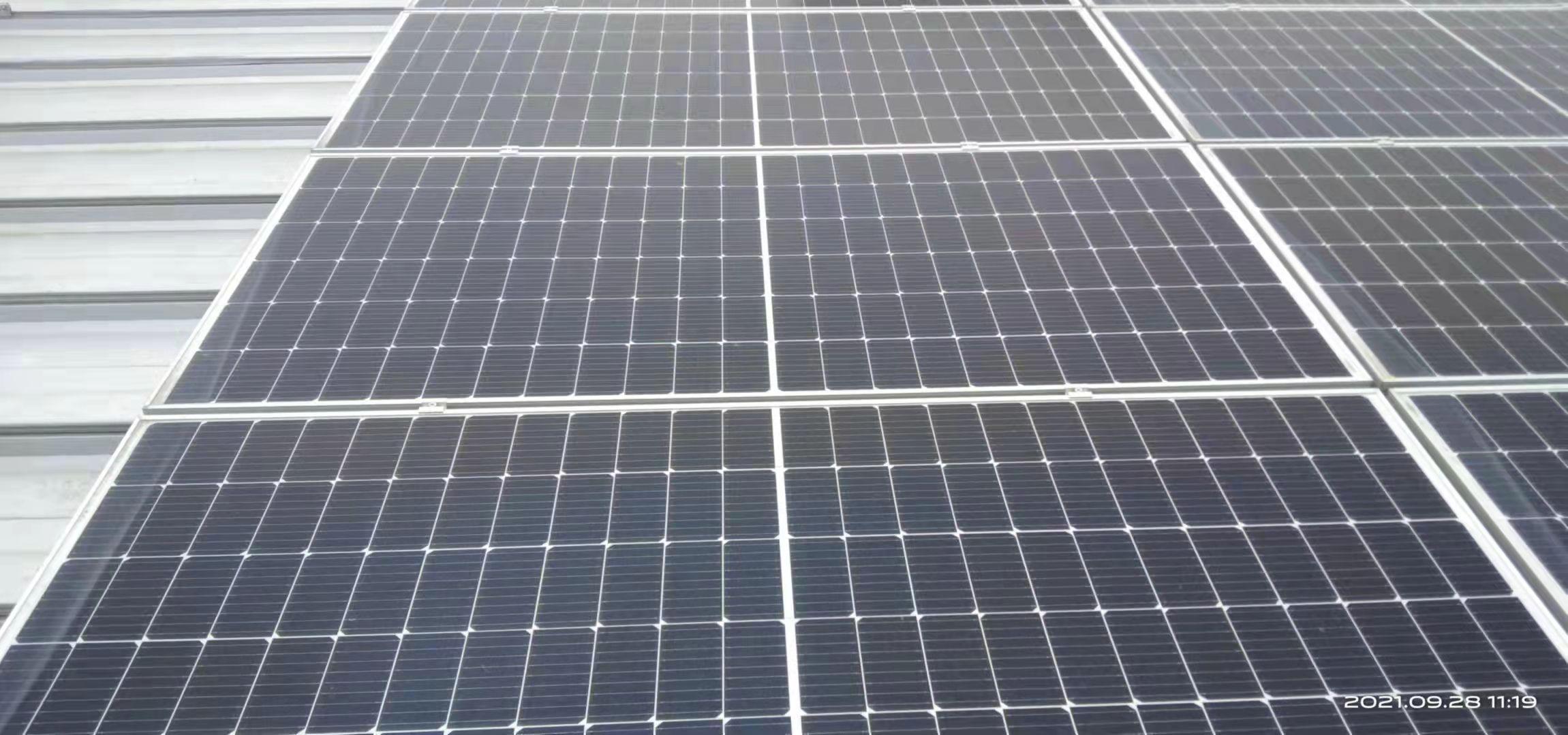

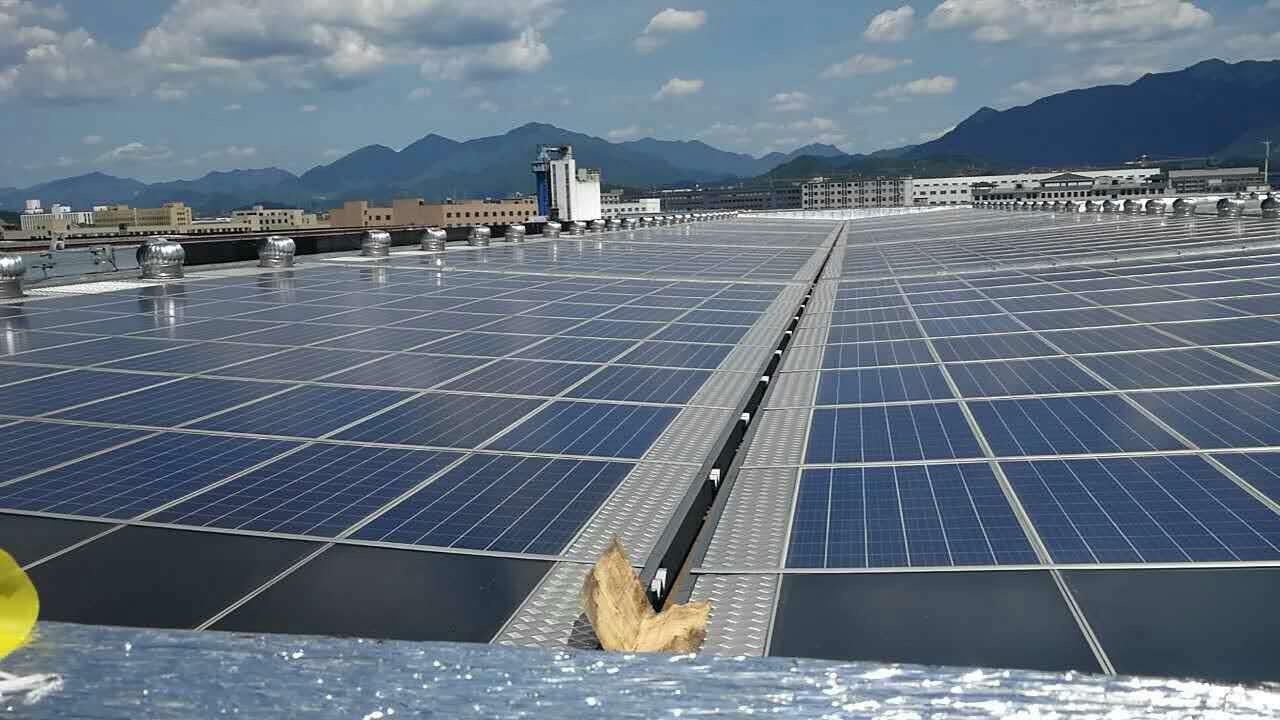

Selecting solar panels has become more nuanced as cell architectures continue to advance and factories shift their production lines toward higher‑efficiency platforms. For anyone involved in manufacturing or system design, understanding the distinctions between modern panel types is essential. Among the current options, N‑type and heterojunction (HJT) technologies have gained strong attention due to their performance, reliability, and compatibility with future trends in photovoltaic engineering. When evaluating panels for either industrial deployment or consumer installations, knowing how these technologies behave from a factory technologist’s perspective provides a clearer foundation for informed decisions.

Interest in N‑type panels has grown steadily because the silicon substrate inherently carries several advantages over P‑type. N‑type wafers are less prone to common degradation mechanisms such as light‑induced degradation and boron‑oxygen defects. This stability becomes evident in long‑term field data, where N‑type cells maintain performance with less drift and fewer early‑life surprises. When factories adopt N‑type wafers, they also gain more flexibility in processing conditions, especially when working with thinner substrates. Thinner wafers help reduce material use and reduce the overall cost structure, but maintaining strength and preventing thermal stress requires careful line design.
